Investor previewAEGIS BMS: Titan™ and Zeus™
Battery management designed by AEGIS, from the board that watches every cell to the controller that runs each high-voltage string.
Power that stands guard
Lithium iron phosphate energy storage, American-engineered and U.S.-assembled in San Diego. From an 18 kW home unit to a 4.8 MWh Power Container, the Shield line is ready to order now.
Available now
Every system ships paired at the factory with one Sol-Ark inverter model, with Sentinel Pro monitoring and a 12-year warranty.
AEGIS · pronounced A-jiss
Solid line: shipping now. Battery string voltages shown under each system.
Dashed line: in development. Details for qualified investors and partners under NDA.
Pick the Shield for the site
Each system is one locked pairing: the battery, the inverter and the controls are matched and set up together before they ship. The same 16.1 kWh module runs every one of them.

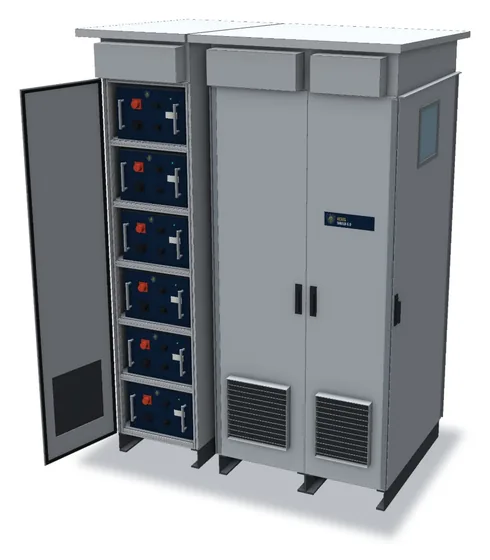

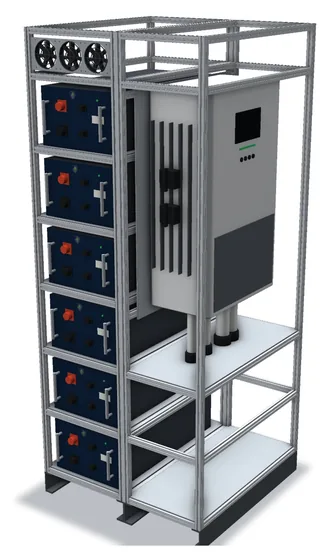

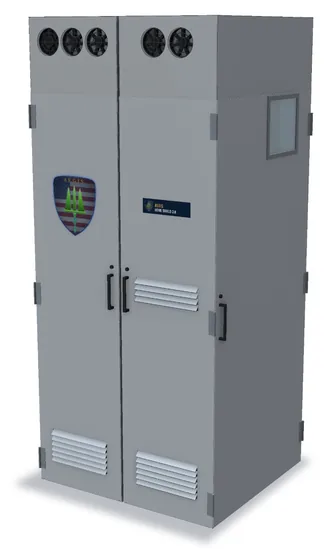

| Specification | Home Shield 3.0Available now | Shield 4.0 CommercialAvailable now | Shield 6.0Available now | Power ContainerBuilt to order |
|---|---|---|---|---|
| For | Homes | Clinics, shops, small buildings | Industrial and large buildings | Facilities, campuses, bases |
| AC power | 18 kW | 30 kW | 60 kW | 420 kW |
| Storage | 48.2 or 144.7 kWh | 96.5 kWh per string, 193 kWh with two | 193 kWh per string, 386 kWh with two | 4.8 MWh |
| Service | 120/240 V split-phase | 120/208 V three-phase | 277/480 V three-phase | 277/480 V three-phase |
| Cells | Hithium 314 Ah LFP | Hithium 314 Ah LFP | Hithium 314 Ah LFP | Hithium 314 Ah LFP |
| Battery string | 51.2 V, modules in parallel | 307 V, 6 modules | 614 V, 12 modules | 25 strings of 614 V |
| Solar input | 28.8 kW | 39 kW | 78 kW | AC-coupled canopy option |
| Inverter | Sol-Ark 18K-2P-N | Sol-Ark 30K-3P-208V | Sol-Ark 60K-3P-480V | 7 × Sol-Ark 60K-3P-480V |
| Details | Home Shield 3.0 details | Shield 4.0 Commercial details | Shield 6.0 details | Power Container details |
Ratings are nominal. Inverter ratings are from Sol-Ark's datasheets. Specifications can change without notice.
Built to order

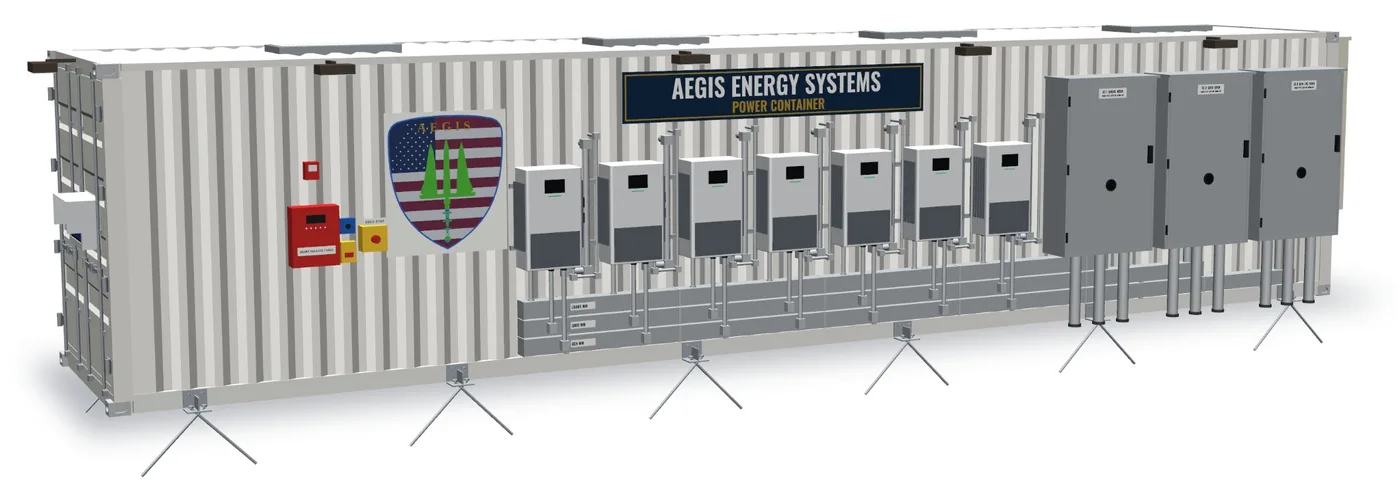

A power plant in a 43 ft container
Seven inverters share the load and 25 battery strings each have their own controller and contactors, so a fault takes out one string, not the system. All power conversion sits outside the battery room.
4.8MWhEnergy storage, LFP
420kWContinuous AC power
480VThree-phase, 60 Hz
506AContinuous at 480 V
Coming next from AEGIS
Two programs are in development in San Diego. Every system we ship today is built on Hithium lithium iron phosphate cells and proven battery management, and that continues while these programs are developed and qualified. The public pages give the outline; prototype pages are open to qualified investors and partners who sign our NDA.
Investor preview
Investor previewSodium-IronX™ cell
AEGIS's own sodium iron battery cell, designed to be made in the United States from abundant materials.
Included with every system
Every cell, live, on your phone

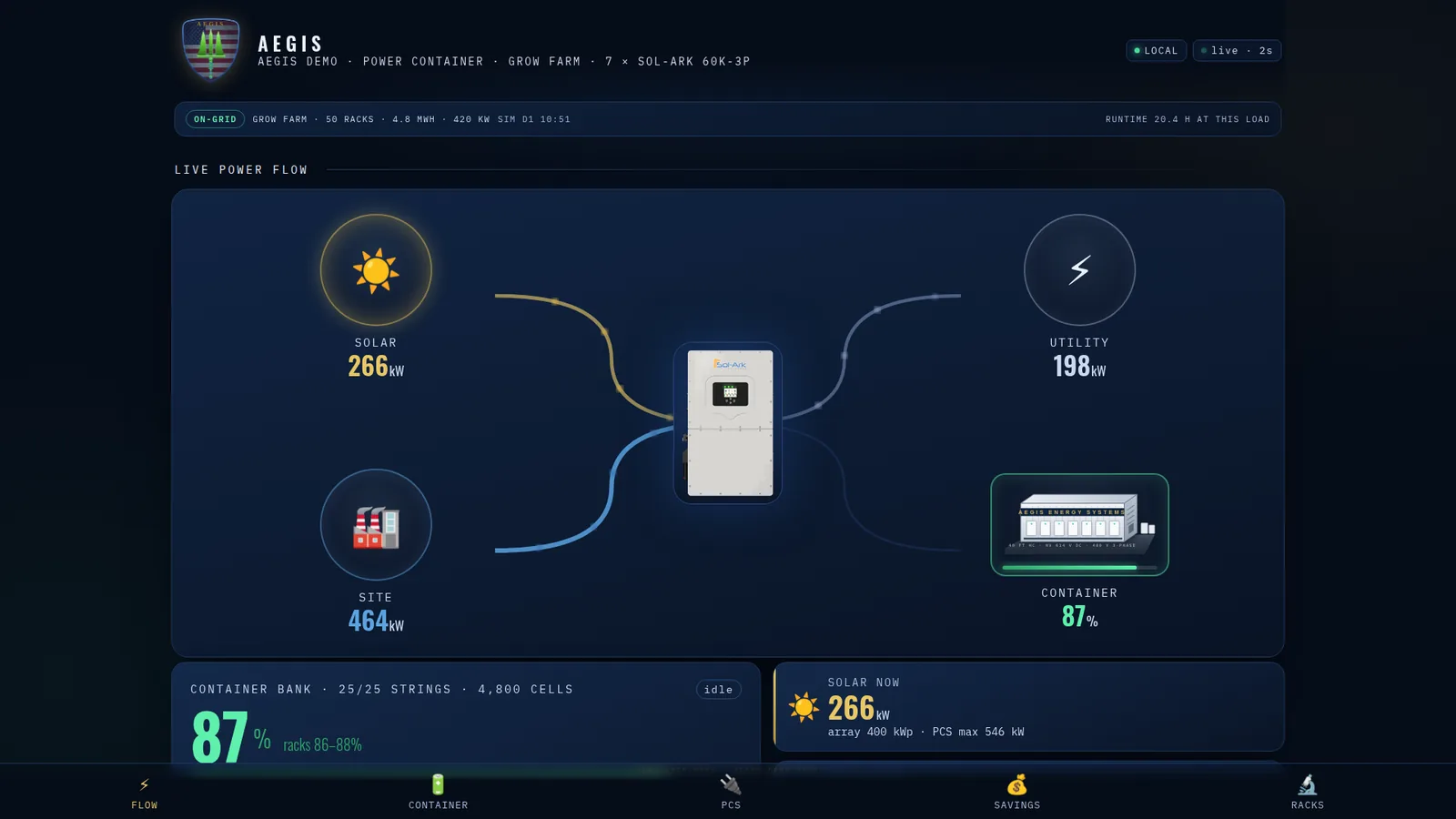

Sentinel Pro monitoring comes with every AEGIS system. You see it in CellSight: power flow, every cell's voltage and temperature, energy and savings. Alerts reach AEGIS the moment something drifts.
Government · defense · critical facilities
Power for the mission
Installations, bases and critical facilities buy direct from the manufacturer: U.S.-assembled systems from one building to an installation-scale microgrid, with every part's source stated plainly, a small-business manufacturer in San Diego, and a capability statement ready for the file.
Installation scale
4.8 MWh Power Containers in parallel, each with its own inverters and transfer switch.
Fail-safe by design
Hardwired rapid shutdown and eight layers of protection that never wait on software.
Works without internet
Monitoring runs at the site; off-site reporting follows your data policy.
Full disclosure
Cells, inverters and certifications stated on every quote, with Section 154 of the FY2024 NDAA addressed up front.
Built by AEGIS in San Diego
AEGIS is the manufacturer. We design the systems, assemble the modules and cabinets, write the controls and monitoring software, and support what we ship.
Modules and enclosures
Battery modules on Hithium 314 Ah LFP cells, 80/20 aluminum cabinets and 5052 panels, assembled in-house.
Machining and prototyping
In-house CNC machining and prototyping for parts and fixtures.
Controls and software
Closed-loop battery-to-inverter control, CellSight and Sentinel Pro, written by AEGIS.
Warranty
12-year standard warranty, extendable to 15, 20, 25 or 30 years.
Battery modules
- UL 1973 · UL 9540Certified
- UL 9540ATest method, testing completed
- UL 9540BPending
Inverters
Sol-Ark, per manufacturerUL 1741 and IEEE 1547 listings are held by Sol-Ark for each inverter model.
