Battery modules
One module box runs the whole line: 16 Hithium lithium iron phosphate cells, 16.1 kWh, 14-1/4 × 28-3/4 × 9-1/2 in. Wired in parallel it runs the Home Shield 3.0 at 48 V; wired in series it builds the 307 V and 614 V strings for the commercial systems and the Power Container.
LFP battery module · 48 V

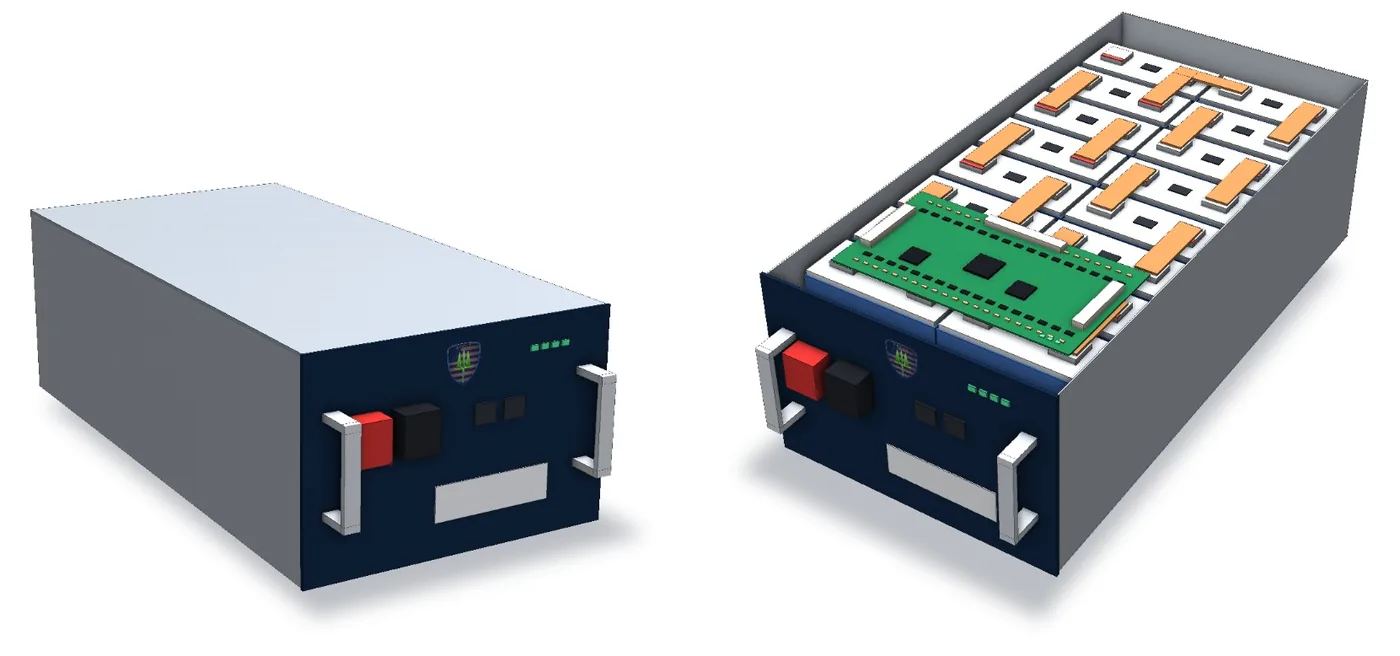

Shield 3.0 48V module
Available nowThe building block of the Home Shield 3.0: three in the home unit, nine with the expansion tower. Also sold as a single replacement module.
Electrical
- Chemistry
- Lithium iron phosphate (LFP)
- Cells
- 16 × Hithium 314 Ah prismatic, 16S
- Nominal voltage
- 51.2 V
- Energy
- 16.1 kWh
- Inverter link
- Closed-loop communication with the Sol-Ark 18K
- Monitoring
- Sentinel Pro
Mechanical and systems
- Dimensions
- 14.25 × 28.75 × 9.5 in (362 × 730 × 241 mm)
- Mounting
- One per shelf, loaded from the front
- Wiring
- Parallel at 51.2 V
- System energy
- 48.2 or 144.7 kWh
- Transport
- UN 3480, Class 9
LFP battery module · high-voltage strings

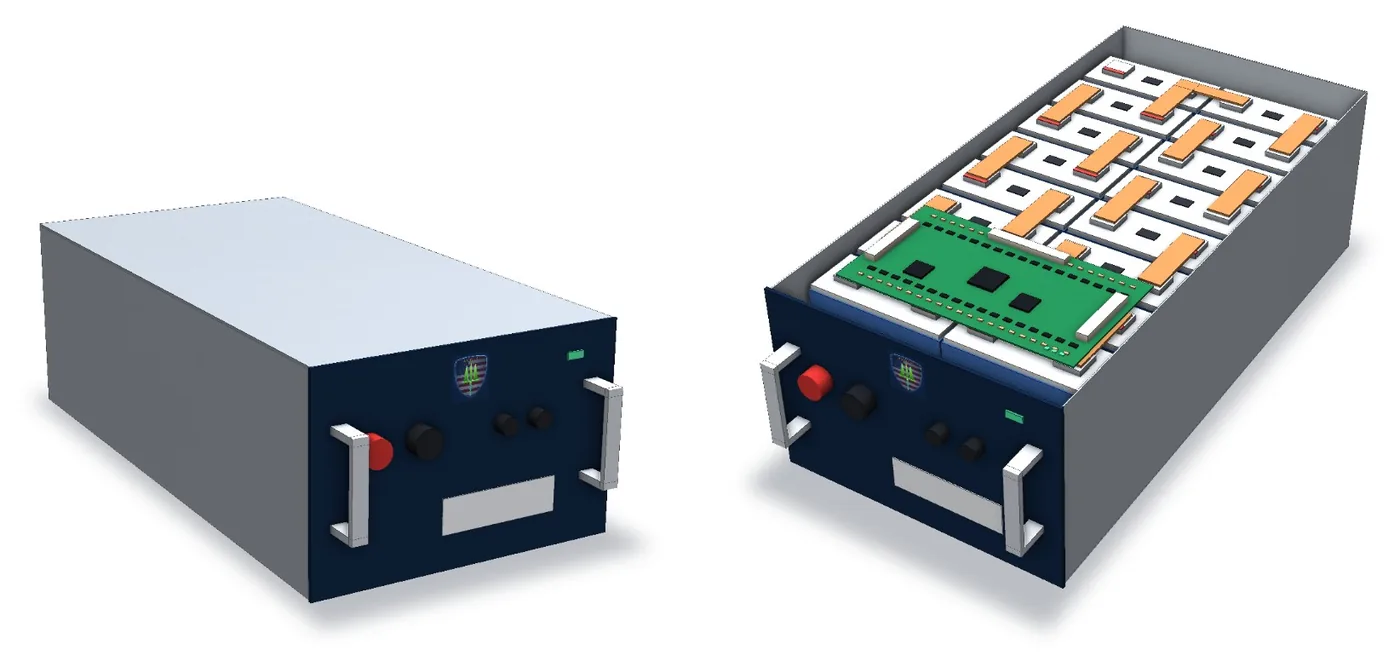

Shield HV module
Available nowThe same 16.1 kWh box, the same sixteen Hithium cells, with front HV receptacles and a communication chain. It stacks in series: six for the Shield 4.0, twelve for the Shield 6.0, and 25 strings of twelve in the Power Container.
| System | Modules | String voltage | Energy |
|---|---|---|---|
| Shield 4.0 Commercial | 6 in series (96S) | 307 V | 96.5 kWh per string |
| Shield 6.0 | 12 in series (192S) | 614 V | 193 kWh per string |
| Power Container | 25 strings of 12 | 614 V | 4.8 MWh |
Nominal string voltages. Every high-voltage string has its own controller and contactors, and insulation on the battery bus is monitored.
Certified before installation
Every module, 48 V or HV, carries the same certification basis before it goes into a cabinet or a container.
Battery modules
- UL 1973 · UL 9540Certified
- UL 9540ATest method, testing completed
- UL 9540BPending
The AEGIS module line
We plan to sell the module box, the prefabricated harnesses and the AEGIS BMS as a U.S.-assembled line of their own, built to take any cell that fits the module space.
Pricing, timing and partner terms are shared with qualified partners under NDA.
In development
